Common Rail High Pressure Tester, max. 2000 bar
Product number:
3350

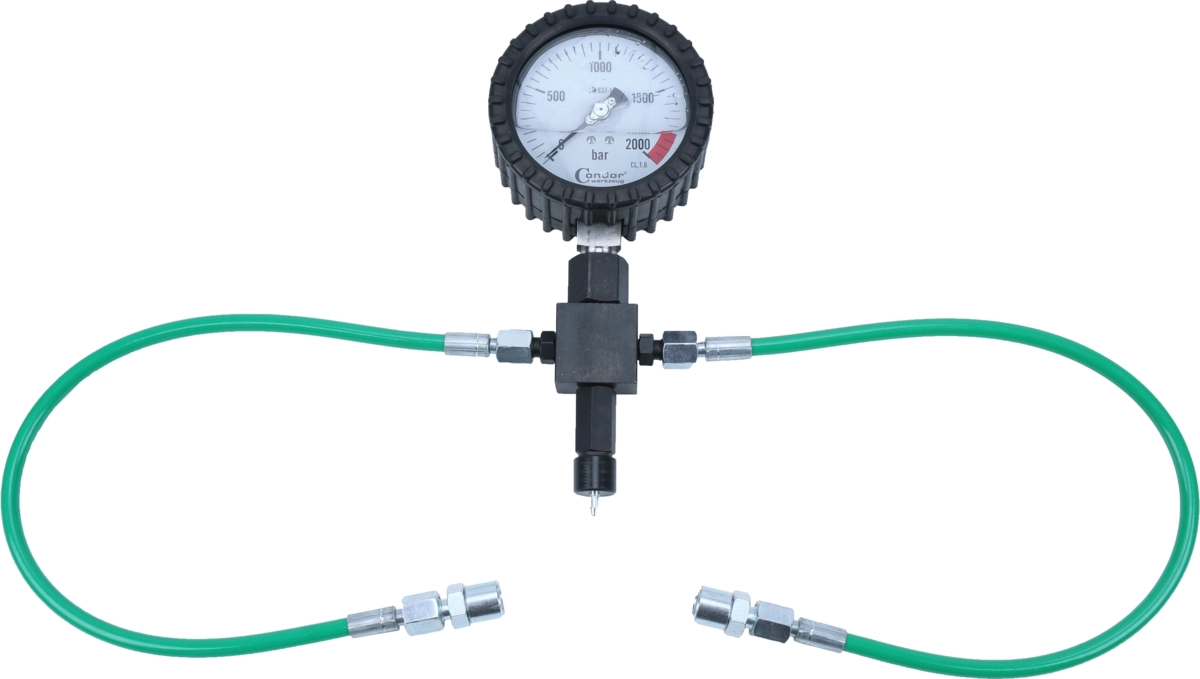

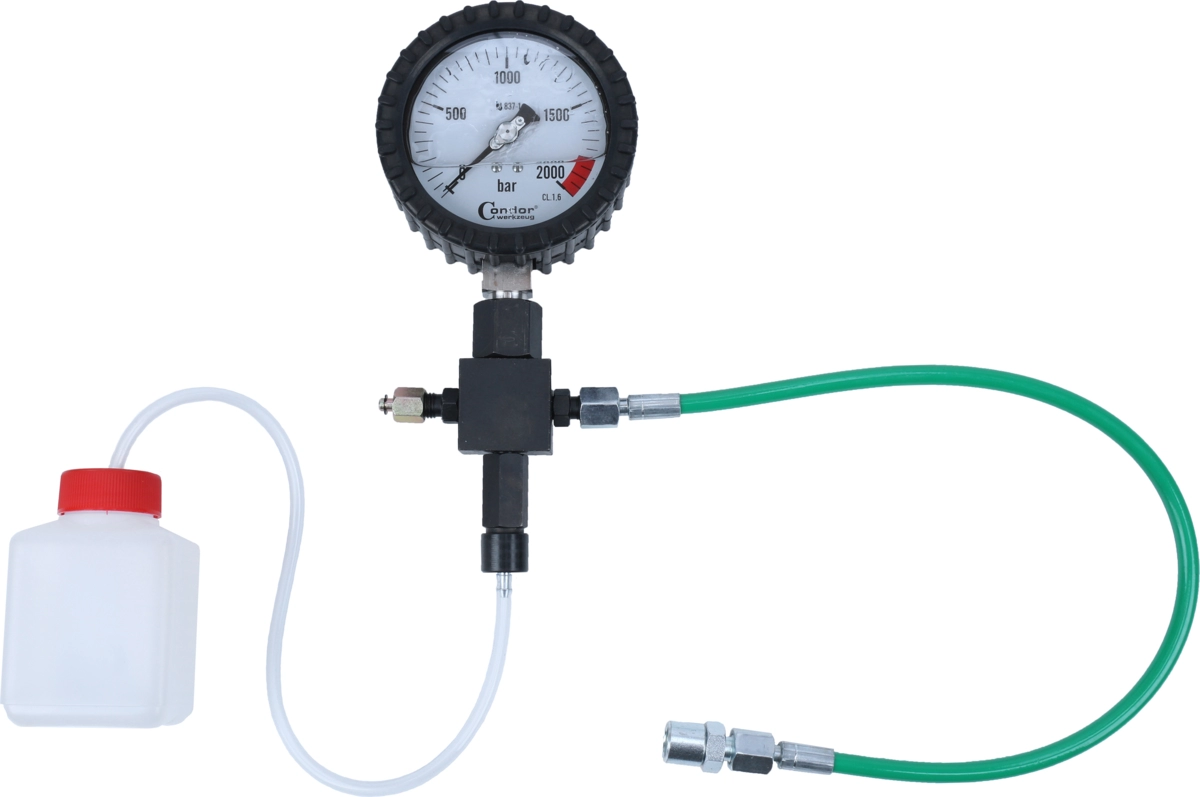

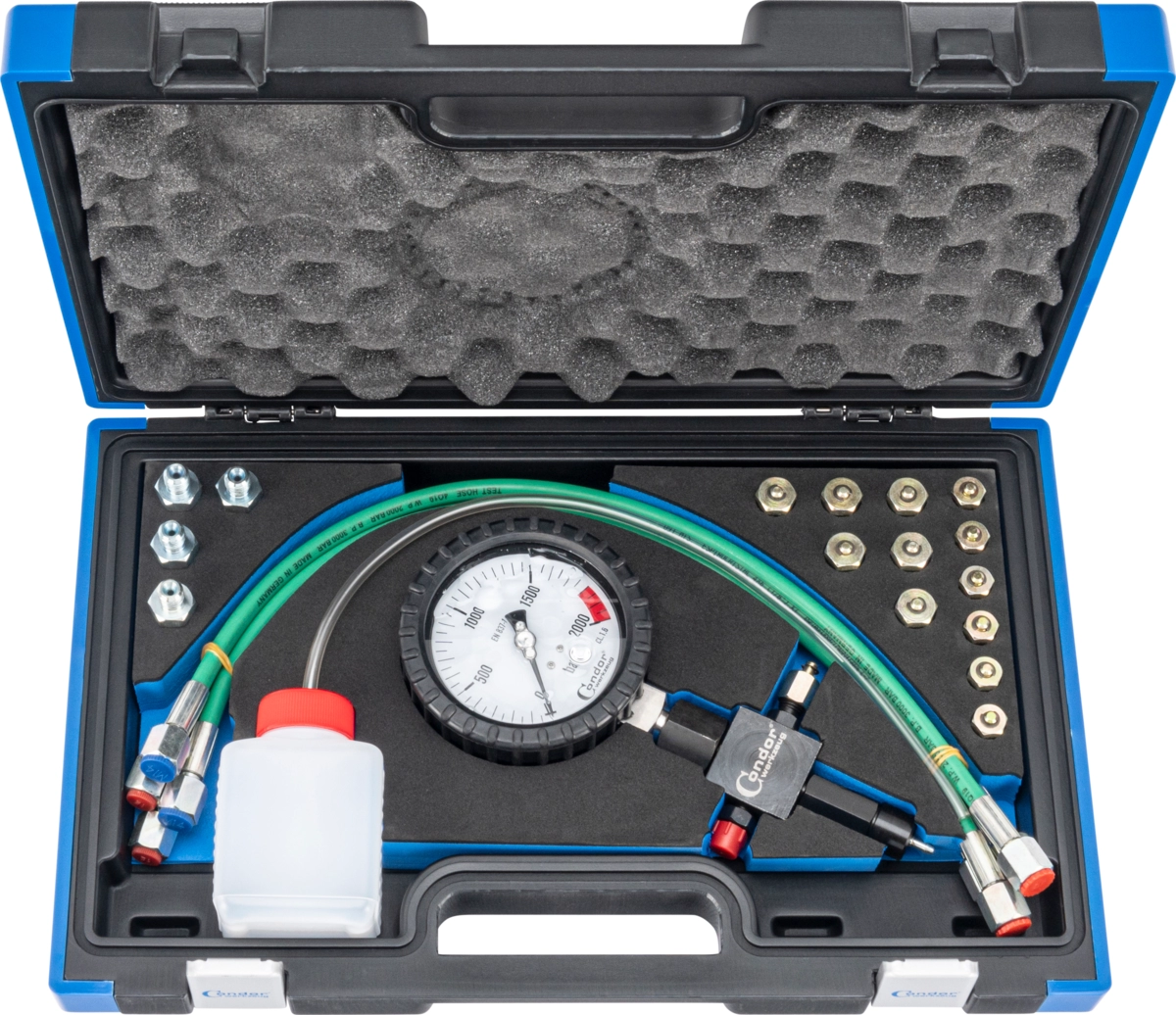

Common Rail High Pressure Tester, max. 2000 bar
Only 2 left
Product number:
3350
Product information "Common Rail High Pressure Tester, max. 2000 bar"
- Most modern diesel vehicles usually have common rail systems, which operate with pressure above 1000 bar. Trouble Shooting often takes place by tracking the digital signals of pressure sensors in the vehicle. But malfunctioning or wrongly set sensors can lead to inaccurate results. The Condor Common Rail High Pressure Tester measure the real pressure with an analog 2000 bar glycerin-filled manometer, manufactured from stainless steel.
- manometer max. 2000 bar, stainless steel with protective rubber coating, relief valve 1400 bar
- testing functions:
starting pressure of high pressure pump
operating pressure in various rpm ranges – also on running engine
maximum pressure of high pressure pump
leaks and dripping of individual injectors
accessory kit Nr. 3351 allows to check the correct functioning of the high pressure pump and pressure sensor
| Measuring Range: | 2000 bar |
|---|---|
| Length: | 450 mm |
| Width: | 290 mm |
| Height: | 85 mm |
| Weight: | 4,008 kg |
| EAN: | 4037374033507 |
Adapter Set for Common-Rail Tester No. 3350, 9 pcs.
Product number: 3351
extends the scope of applications for common rail high pressure tester Nr. 3350:testing for correct functioning of the pressure sensortesting for correct functioning of the high pressure pump includes comprehensive o-ring assortment

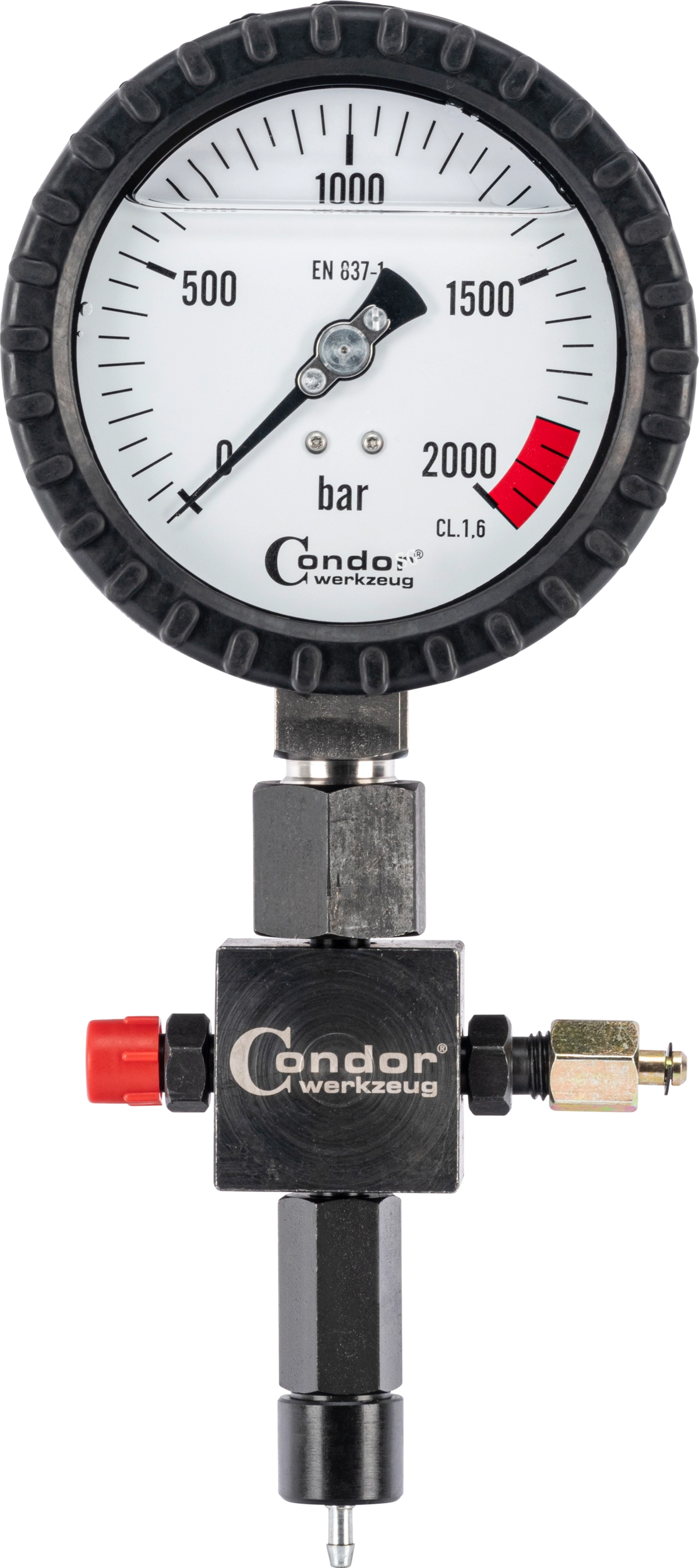

Stainless Steel Manometer, 2000 bar
Product number: 3350-01
Variants:
Stainless Steel Manometer, 2000 bar (3350-01)

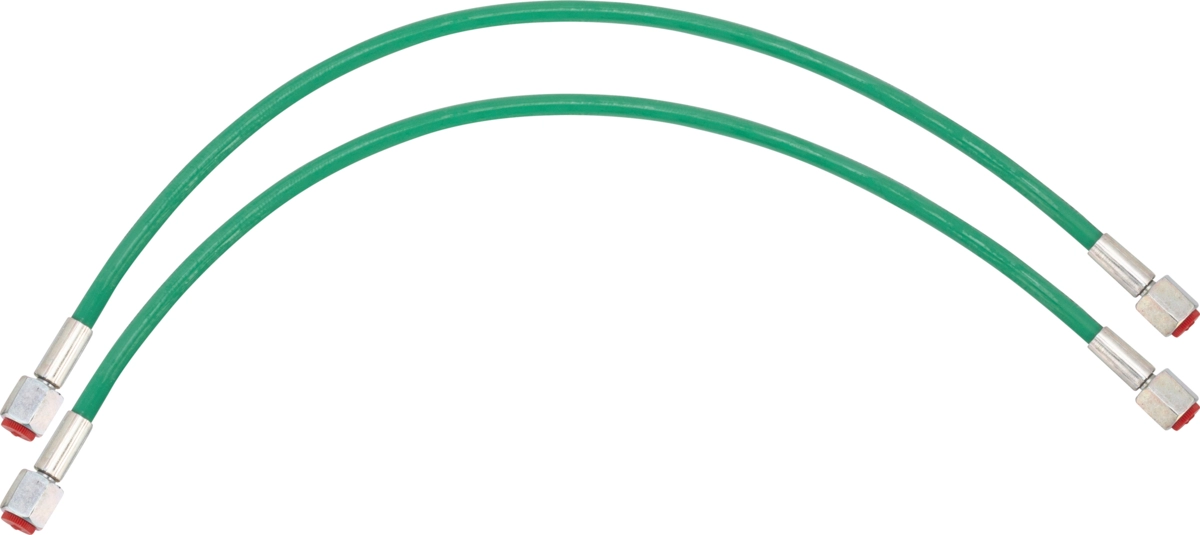

Connection Hose, M12x1.5, 550 mm
Product number: 3350-02
Variants:
Connection Hose, M12x1.5, 550 mm (3350-02)

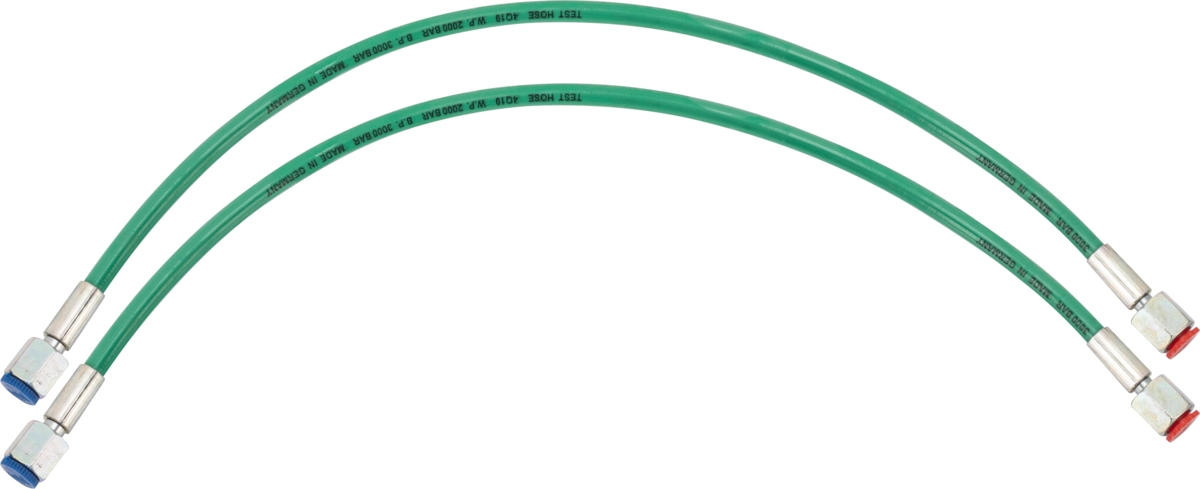

Connection Hose, M14x1.5, 550 mm
Product number: 3350-03
Variants:
Connection Hose, M14x1.5, 550 mm (3350-03)
