Diesel Injector Remover, PSA HDI DW10/DW12

Product information "Diesel Injector Remover, PSA HDI DW10/DW12"

  • also for identically constructed engines from Fiat, Lancia and Suzuki
  • for pulling Bosch and Siemens injectors
  • without disassembling cylinder head
  • support structure and ball bearing produce high pulling force
  • with 3 specialist disassembly sockets
  • for 2.0 and 2.2 HDI-diesel engines
For engine codes: DW10, DW12
Manufacturer: CITROËN, FIAT, LANCIA, PEUGEOT, SUZUKI
Length: 285 mm
Width: 192 mm
Height: 54 mm
Weight: 3,325 kg
EAN: 4037374033392

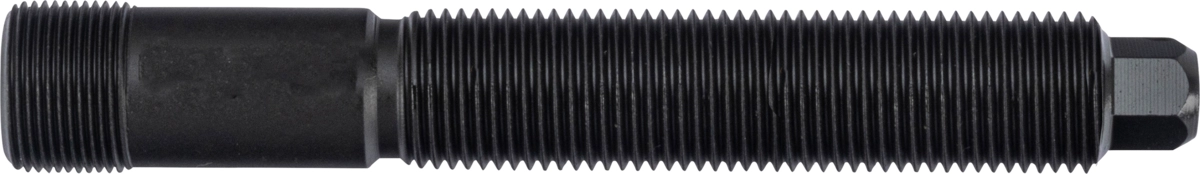

Drawing Spindle, M17x1.0
Product number: 3339-01
Variants: Drawing Spindle, M17x1.0 (3339-01)

Drawing Spindle, M25x1.0
Product number: 3339-02
Variants: Drawing Spindle, M25x1.0 (3339-02)

Thrust Nut
Product number: 3339-03
Variants: Thrust Nut (3339-03)

Support Plate, with ball bearing
Product number: 3339-04
Variants: Support Plate, with ball bearing (3339-04)

Support Bolt, short
Product number: 3339-05
Variants: Support Bolt, short (3339-05)

Support Bolt, 2 pcs., long
Product number: 3339-06
Variants: Support Bolt, 2 pcs., long (3339-06)

Specialist Socket, 1/2", hex 29 mm, slotted
Product number: 3339-07
Variants: Specialist Socket, 1/2", hex 29 mm, slotted (3339-07)

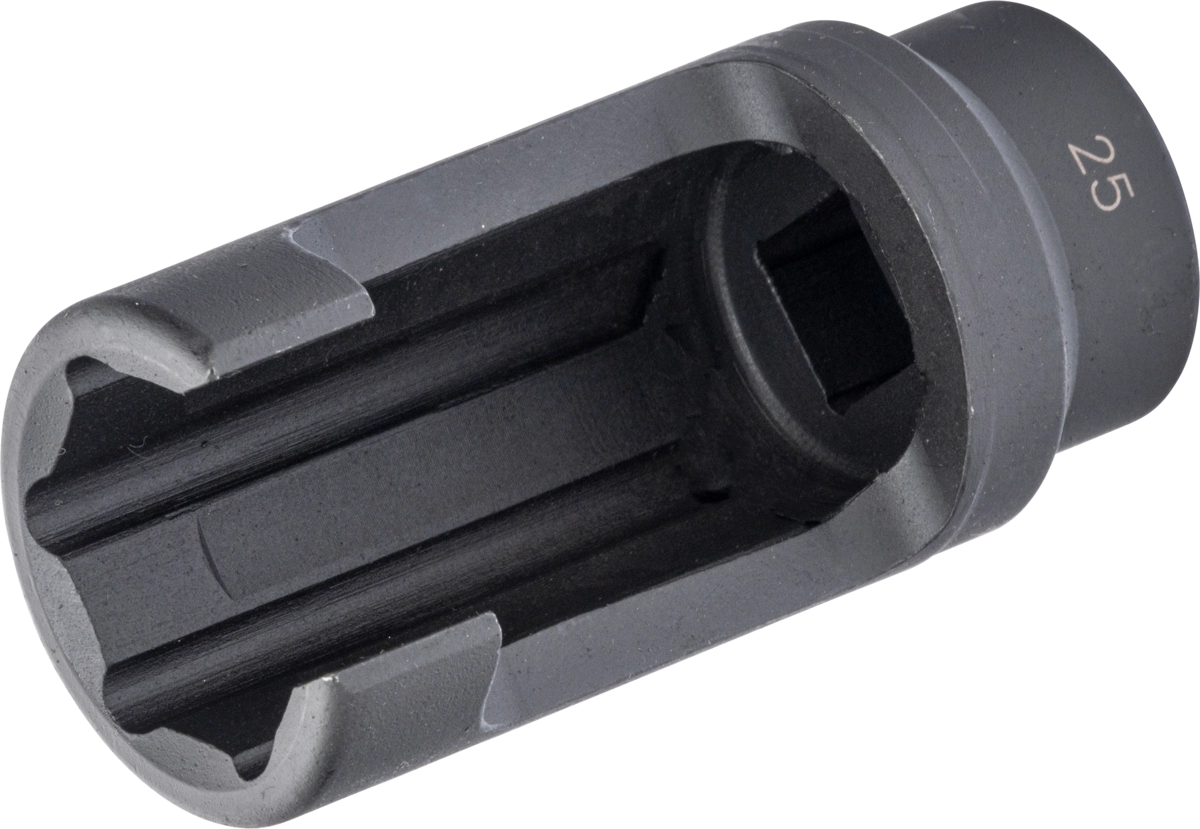

Specialist Socket, 1/2", hex 25 mm, slotted
Product number: 3339-08
Variants: Specialist Socket, 1/2", hex 25 mm, slotted (3339-08)

Specialist Socket, for No. 3339-04
Product number: 3339-10
Variants: Specialist Socket, for No. 3339-04 (3339-10)
