Product information "Press Frame, c-type"
- for extracting workpieces without bore, e.g. supporting joints or bushes with too small bore
- valuable accessory for common press and pull sleeve sets, e.g. No. 5505
- open c-shaped construction allows more flexible operation directly on vehicle compared to conventional press frames
- magnetic holders on thrust plates for convenient working
- with impact quality M18 vibration spindle; the momentum produced by impact wrench acts like hammer strokes on the workpiece, thus causing tight connections to break open
- can be converted for use with hydraulic spindle (UN1.1/2"x16 thread), e.g. No. 5501
| Description: | clearance 220 x 95 mm |
|---|---|
| Length: | 485 mm |
| Width: | 295 mm |
| Height: | 85 mm |
| Weight: | 8,7 kg |
| EAN: | 4037374055080 |
for removal and replacement of bearings silent blocks, ball bearings, rubber bearings, also bushes, oil seals, etc.4 spindles: M10, 12, 14, 16spindle length: 350 mmspindle nuts equipped with thrust bearings20 thrust sleeves, slitted pattern for monitoring work progress, outer-ø: 44, 46, 48, 50, 52, 54, 56, 58, 60, 62, 64, 66, 68, 70, 72, 74, 76, 78, 80, 82 mm inner-ø: 34, 36, 38, 40, 42, 44, 46, 48, 50, 52, 54, 56, 58, 60, 62, 64, 66, 68, 70, 72 mm

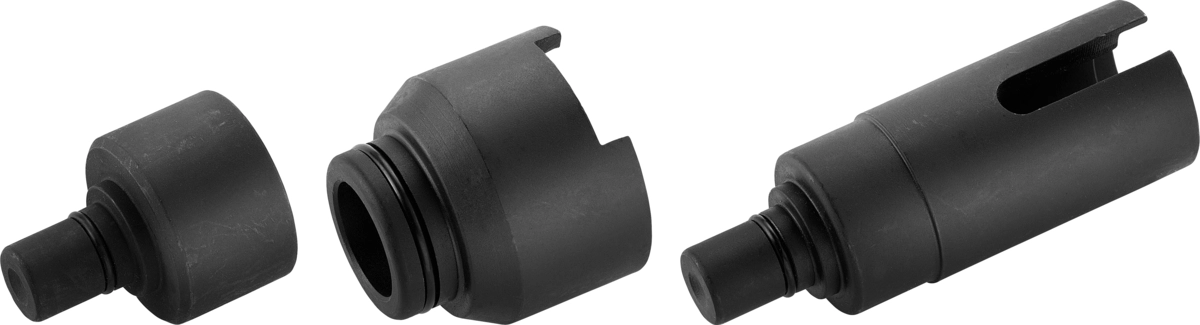

for disassembly / assembly of stabiliser ball joints on front control armextension set for nr. 5507 or to be operated in combination with press frame no. 5508 and adapter sleeve no. 5507/1

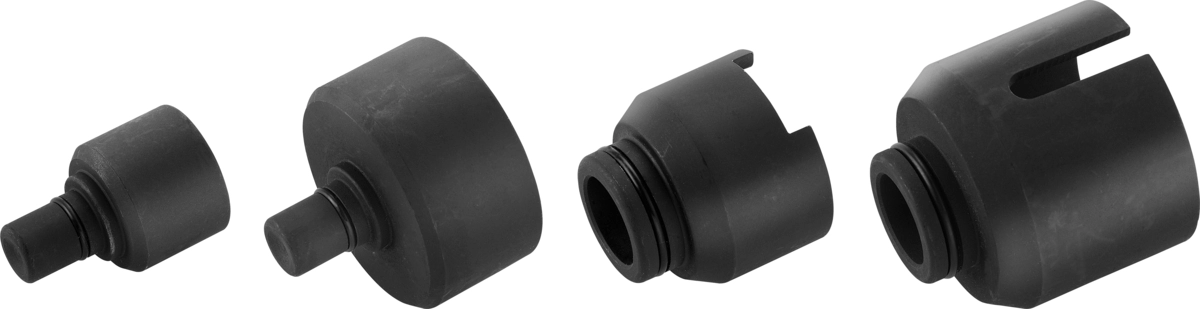

for disassembly / assembly of the outer supporting jointsfor Mercedes series W211 (E-class), W220 (S-class), W230 (SL-class)to be operated with press frame No. 5508 and adapter sleeve No. 5507/1allows all jobs to be performed directly on the vehicleavoids removal of other components like e.g. steering knuckles
to operate thrust pieces from set No. 5507-3 and No. 5507-4 with press frame No. 5508
