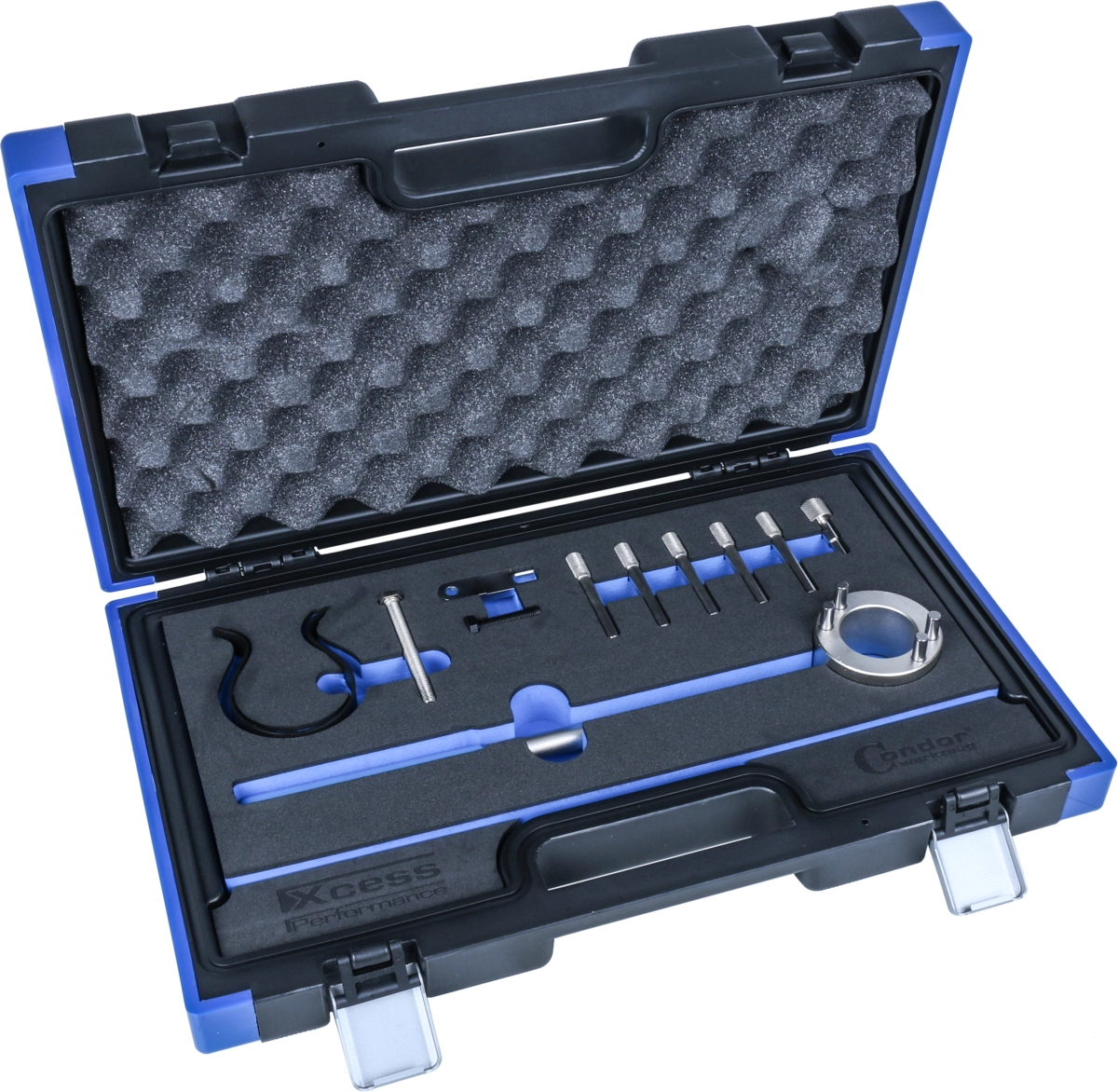

Timing Tool Set, PSA 3.0L V6

Product information "Timing Tool Set, PSA 3.0L V6"

  • also suitable for identically constructed engines from Fiat, Lancia and Renault
  • for 3.0L V6 petrol engines with 24 valves
  • in Citroen C5 I / II / III, C6, C8, Xantia I / II and XM
  • in Peugeot 406, 605, 607 and 807
  • in Renault Avantime, Clio II, Espace III, Laguna I / II and Safrane II
  • in Fiat Ulysse
  • in Lancia Phedra
  • for locking the camshafts and crankshaft
  • for positioning the tensioner device
  • for timing belt replacement or engine repair
For engine codes: ES9A, ES9J4, ES9J4S, L7X700, L7X701, L7X713, L7X720, L7X721, L7X727, L7X731, L7X760, L7X762, XFU, XFV, XFW, XFX, XFZ
Manufacturer: CITROËN, FIAT, LANCIA, PEUGEOT, RENAULT
OEM Comparison No.: 0132AK / 0153AK / 0187J / 0188K / 0189K / 4533TAD / MOT1436 / 1870900100, 0187A / 0187B / MOT1430 / 1870893000 / 607589011500, 0187C / 0187F / MOT1428, 0187CZ / MOT143001, 0187E / MOT1429
Length: 450 mm
Width: 290 mm
Height: 85 mm
Weight: 2,9 kg
EAN: 4037374365301
Camshaft Counterholder
Product number: 6530-01

Camshaft Timing Pin Gauge
Product number: 6530-02

Tensioner Screw, M8x35 mm
Product number: 6530-03

Tensioning Tool
Product number: 6530-04

Tensioner Screw, M8x70 mm
Product number: 6530-05

Timing Belt Bracket
Product number: 3521-14
