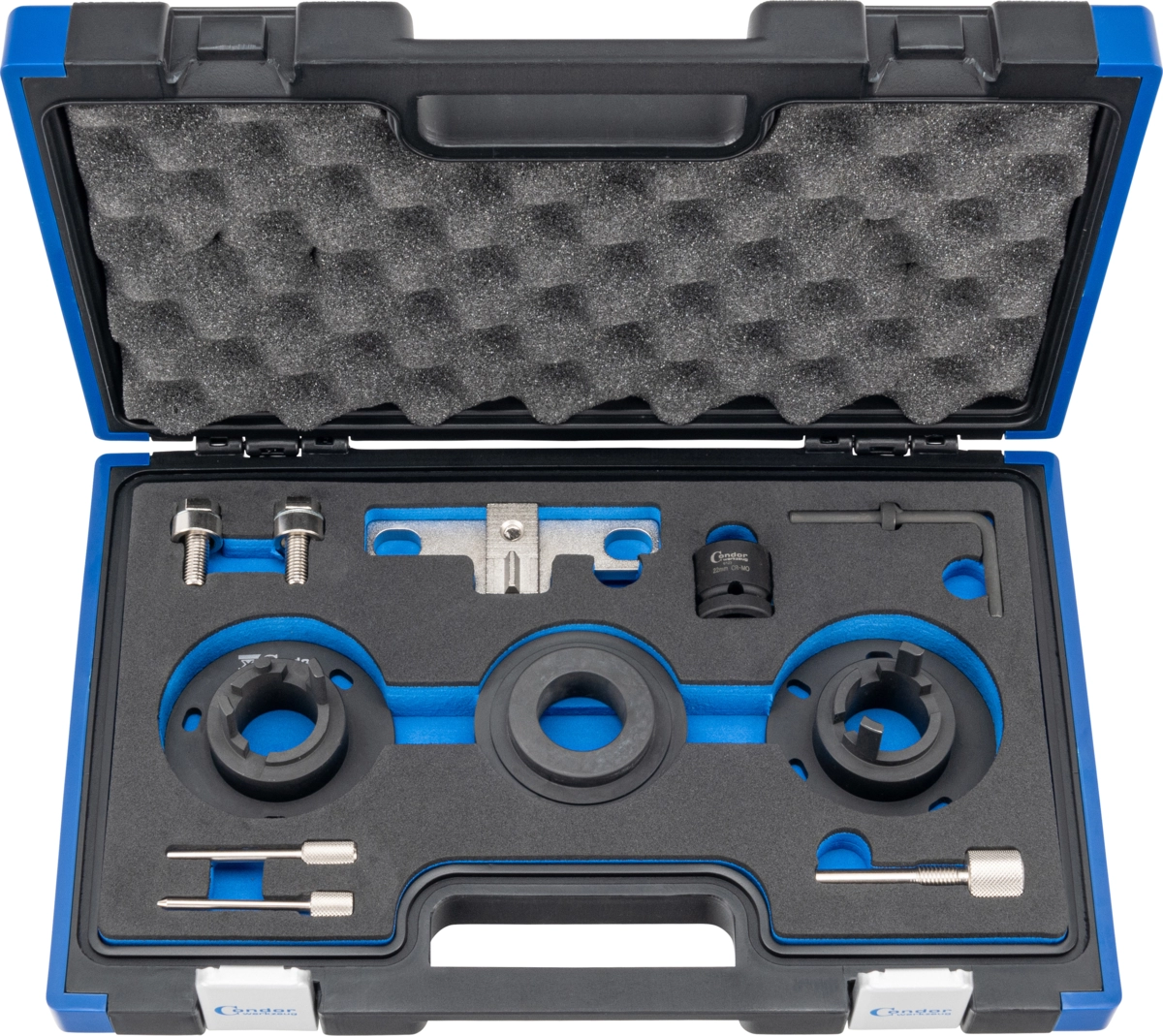

Timing Tool Set, Ford
Timing Tool Set, Ford
26 available
Product information "Timing Tool Set, Ford"
- for 1.0 Ecoboost II (FOX) 3-cylinder petrol engines from 2018
- in C-MAX, Fiesta, Focus, Focus Active, Grand C-MAX, Puma, Tourneo and Transit Connect
- for locking the camshafts and crankshaft
- for adjusting the cam phaser
- for replacing the front crankshaft seal
- for timing chain replacement or engine repair
| For engine codes: | B3DA, B3GA, B3GB, B7DA, B7DC, B7JA, B7JB, B7JC, B7JE, BZJA, M0DC, M0JA, M0JB |
|---|---|
| Manufacturer: | FORD |
| OEM Comparison No.: | 303732 / 21260 / 49JE02018, 310018 / 23019 / 49JE01063, 2450487 / 30316613, 3031603, 3031604, 3031643, 30316611, 30316612, KM6130 / EN9552 |
| Length: | 450 mm |
| Width: | 290 mm |
| Height: | 85 mm |
| Weight: | 5,69 kg |
| EAN: | 4037374362133 |
for 1.0 and 1.1 L EcoBoost and Duratec Enginesin Ford B-MAX, C-MAX, Connect, EcoSport, Fiesta, Focus, Grand C-MAX, Grand Tourneo, Mondeo, Tourneo Connect, Transit Connect and Transit Couriergear ratio: 1:5for loosening and tightening the crankshaft pulleyto replace the front crankshaft sealfor timing belt replacement or engine repair
for operating the central screw connection on the camshaft valve of Vanos (BMW, Mini) and VCT (Ford)the applied screws are tension screws which require replacementnews screws are supplied with this specialist groove profile, which supersedes the old hexagon screwextra short design for working in tight spaces in the engine compartmentfor timing chain replacement and engine repair
for many manufacturers and models, OEM-comparison numbers: 21260 / 5711TD / 0178D / 077440010400 / 303732 / 0194A / 1860617000 / 9997169 / 119870 / 49JE02018
